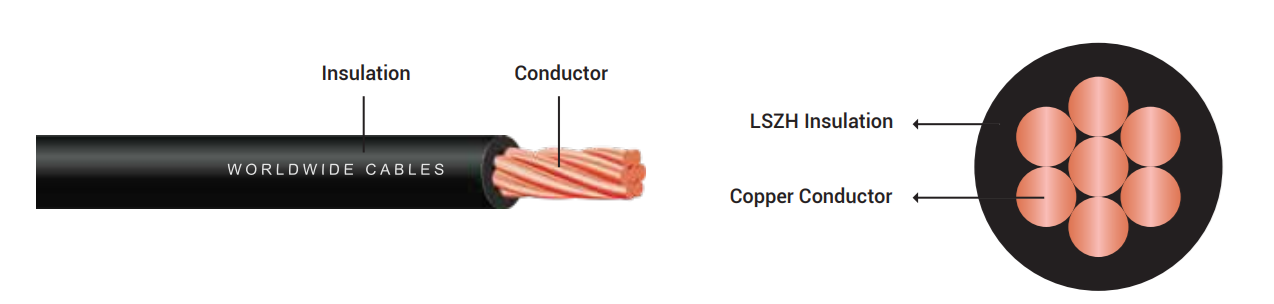

Single Core PVC Building Wires

Construction : Plain Annealed Stranded Copper Wires (Class-1,Class-2)
Description : Cu/PVC
Rated Voltage : 450/750 V
Construction/Test Standard : BS:6004,BS EN 50525-2-31,IEC 60228
Max. Operating Temp : 70°C
Max. Short Cct Temp : 160°C (t≤ 5s)
Test Voltage : 2500 V for 5 minutes
Fire Retardant : IEC 60332-1-2
Minimum Bending Radius (mm) : 4 x d if d ≤ 8 , 5 x d if d ≤ 12 , 6 x d if d > 12
Maximum Pulling Tension (N) : 15 x S (S-conductor cross-sectional in mm2)
Packing : As per requirement

Area of Conductor	Insulation Thickness	Approx. Overall Diameter	Approx. Cable Weight	DC Resistance at 20°C	Current Capacity - 2 cables single-phase	Current Capacity - 3 or 4 cables single-phase
mm²	mm	mm	kg/km	(Ω/km)	a.c. or d.c.	a.c.
1 x 1.0	0.6	2.5	14	18.1	13.5	12
1 x 1.5	0.7	3	20	12.1	17.5	15.5
1 x 2.5	0.8	3.5	30	7.41	24	21
1 x 4	0.8	4	45	4.61	32	28
1 x 6	0.8	4.5	65	3.08	41	36
1 x 1.0	0.6	3	14	18.1	13.5	12
H07V-R (Class-2 Stranded)
1 x 1.5	0.7	3.5	22	12.1	17.5	15.5
1 x 2.5	0.8	4	35	7.41	24	21
1 x 4	0.8	4.5	50	4.61	32	28
1 x 6	0.8	5	70	3.08	41	36
1 x 10	1	6.5	115	1.83	57	0
1 x 16	1	7.5	180	1.15	76	68
1 x 25	1.2	9	270	0.727	101	89
1 x 35	1.2	10	360	0.524	125	110
1 x 50	1.4	12	500	0.387	151	134
