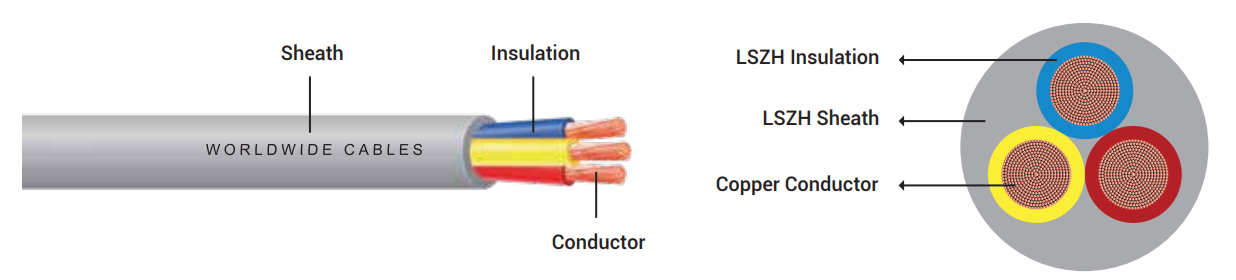

Multi Core PVC Flexible Wires

Construction : Plain Annealed Flexible Copper Wires (Class-5)
Description : Cu/PVC/PVC
Rated Voltage : 300/500 V
Construction/Test Standard : BS:6500,BS EN 50525-2-11,IEC 60228
Max. Operating Temp : 70°C
Max. Short Cct Temp : 160°C (t≤ 5s)
Test Voltage : 1500 V for 5 minutes (S = 0.75 & 1mm²), 2000 V for 5 minutes (S ≥ 1.5mm²)
Fire Propagation Standards : IEC 60332-1-2,EN 60332-1-2(cable vertically mounted,length of charred cable≤540 mm)
Minimum Bending Radius (mm) : 5 x d if d ≤ 12 , 6 x d if d > 12
Maximum Pulling Tension (N) : 15 x S (S-conductor cross-sectional in mm²) (Recommended not to exceed 1000N)
Packing : As per requirement

Area of Conductor	Insulation Thickness	Sheath Thickness	Mean Overall Diameter Lower Limit	Mean Overall Diameter Upper Limit	Approx. Cable Weight	Current Carrying Capacity in Conduits at 30o C (A)	Current Carrying Capacity in Conduits at 30o C (A)
mm²	mm²	mm	mm	mm	kg/km
2 x 0.75	0.6	0.8	5.7	7.2	65	6
2 x 1.0	0.7	0.8	5.9	7.5	70	10
2 x 1.5	0.7	0.8	6.8	8.6	85	16
2 x 2.5	0.8	0.8	7.8	10.1	120	20
2 x 4.0	0.8	1.1	9.7	12.1	185	32
3 x 0.75	0.6	0.8	6.3	8	85		6
3 x 1.0	0.6	0.8	7.4	9.4	110		10
3 x 1.5	0.7	0.9	7.4	9.4	110		16
3 x 2.5	0.8	1	9	11	145		20
3 x 4.0	0.8	1.2	10.5	13.1	235		25
4 x 0.75	0.6	0.9	8	10	100		6
4 x 1.0	0.6	0.9	7.1	9	100		10
4 x 1.5	0.7	1.1	8	10.5	145		16
4 x 2.5	0.8	1.1	11	15	210		20
4 x 4.0	0.8	1.1	11.5	14.3	260		25
5 x 0.75	0.6	1	6.6	9.3	105		6
5 x 1.0	0.6	1	7.4	9.8	125		10
5 x 1.5	0.7	1.1	7.8	11.3	165		16
5 x 2.5	0.8	1.2	9.3	11.6	250		20
5 x 4.0	0.8	1.2	11.2	13.9	375		25
