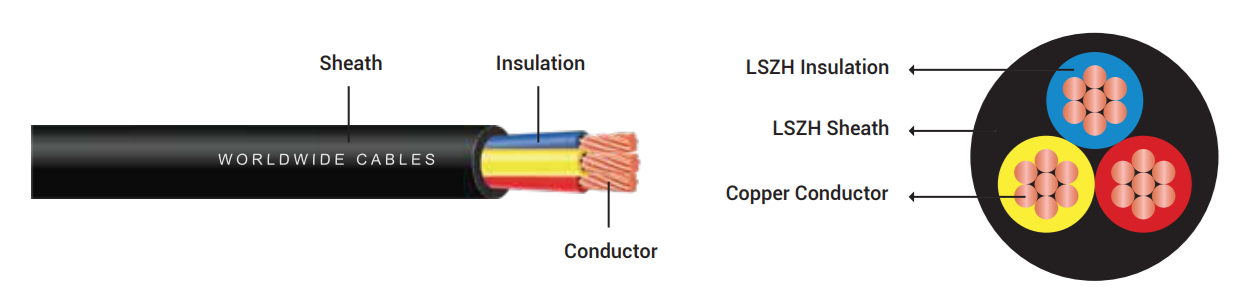

Multi Core PVC Building Wires

Construction : Plain Annealed Stranded Copper Wires (Class-1,Class-2)
Description : Cu/PVC/PVC
Rated Voltage : 300/500 V
Construction/Test Standard : BS:6004,BS EN 50525-2-31,IEC 60228
Max. Operating Temp : 70°C
Max. Short Cct Temp : 160°C (t≤ 5s)
Test Voltage : 2500 V for 5 minutes
Fire Propagation Standards : IEC 60332-1-2
Minimum Bending Radius (mm) : 4 x d if d ≤ 8 , 5 x d if d ≤ 12 , 6 x d if d > 12
Maximum Pulling Tension (N) : 15 x S (S-conductor cross-sectional in mm²)
Packing : As per requirement

Cores x Area of Single Conducto	Insulation Thickness	Inner Sheath Thickness	Sheath Thickness	Mean Overall Diameter Lower Limit	Mean Overall Diameter Upper Limit	Approx. Cable Weight	Current Carrying Capacity in Conduits at 30OC (A) 2 cables, single-phase	Current Carrying Capacity in Conduits at 30OC (A) 3 or 4 cables, single-phase
mm²	mm	mm	mm	mm	mm	kg/km	a.c. or d.c	a.c
2 x 1.0	0.6	0.4	1	6.4	8	90	13.5
2 x 1.5	0.7	0.4	1.2	7	9	125	16.5
2 x 2.5	0.8	0.4	1.2	9	12	170	23
2 x 4	0.8	0.4	1.2	10.5	13	225	30
2 x 6	0.8	0.4	1.2	11.5	15	290	38
2 x 10	1	0.4	1.4	15	17.5	465	52
2 x 16	1	0.6	1.4	16	20	580
2 x 25	1.2	0.8	1.4	20.5	24	750		90
3 x 1.0	0.6	0.4	1	6.2	8	95		11.5
3 x 1.5	0.7	0.4	1.2	8	11	150		15
3 x 2.5	0.8	0.4	1.2	9	12	200		20
3 x 4	0.8	0.4	1.2	11	13.5	250		27
3 x 6	0.8	0.4	1.4	12.5	15	330		34
3 x 10	1	0.4	1.4	14	17	590		46
3 x 16	1	0.8	1.4	18	21.5	835		60
4 x 1.0	0.6	0.4	1.2	7.7	9.4	125		13.5
4 x 1.5	0.7	0.4	1.2	8	11	155		17
4 x 2.5	0.8	0.4	1.2	11	15	275		20
4 x 4	0.8	0.6	1.4	13.5	17	345		27
4 x 6	0.8	0.6	1.4	17	20.5	470		34
4 x 10	1	0.6	1.4	20	25	725		46
4 x 16	1	0.8	1.4	20.5	26	1055		62
4 x 25	1.2	1	1.6	24.5	28.5			80
