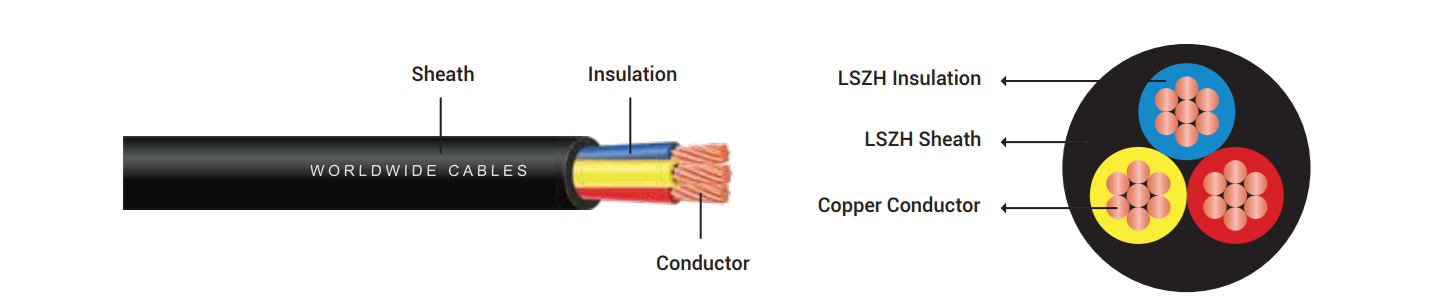

Multi Core LSZH Building Wires

Cores x Area of Single Conductor	Insulation Thickness	Sheath Thickness	Approx. Overall Diameter	Approx. Cable Weight	DC Resistance at 20°C	Current Carrying Capacity in Conduits at 30°C (A) 2 cables, single-phase	Current Carrying Capacity in Conduits at 30° C (A) 3 or 4 cables, single-phase
mm²	mm	mm	mm	kg/km	Ω/km	a.c. or d.c.	a.c.
2 x 1.5	0.8	1.8	10.5	165	12.1	22
2 x 2.5	0.8	1.8	11.5	215	7.41	30
2 x 4	1.0	1.8	13.5	310	4.61	40
2 x 6	1.0	1.8	15.0	400	3.08	51
2 x 10	1.0	1.8	17.0	570	1.83	69
2 x 16	1.0	1.8	19.0	815	1.15	91
2 x 25	1.2	1.8	19.0	1025	0.727	119
3 x 1.5	0.8	1.8	11.5	1220	12.1		19.5
3 x 2.5	0.8	1.8	12.5	1635	7.41		26
3 x 4	1.0	1.8	13.5	2265	4.61		35
3 x 6	1.0	1.8	16.0	3110	3.08		44
3 x 10	1.0	1.8	18.0	3855	1.83		60
3 x 16	1.0	1.8	19.5	750	1.15		80
3 x 25	1.2	1.8	20.0	5935	0.727		105
4 x 1.5	0.8	1.8	12.5	175	12.1		19.5
4 x 2.5	0.8	1.8	13.5	245	7.41		26
4 x 4	1.0	1.8	15.0	360	4.61		35
4 x 6	1.0	1.8	17.0	485	3.08		44
4 x 10	1.0	1.8	19.0	700	1.83		60
4 x 16	1.0	1.8	22.0	1010	1.15		80
4 x 25	1.2	1.8	23.0	1325	0.727		105

For further information please contact Worldwide Cables engineering department.
