23 AWG F/FTP Cat-7 Cable

Refrence Standard : ANSI/TIA-568-C.2

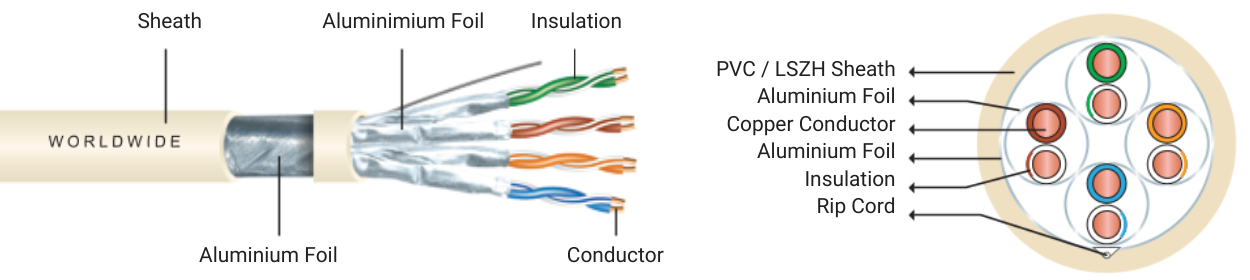

Conductor : 23 AWG Solid Plain Copper (4-Pair shielded twisted)
Pairs are wrapped in Polyester Tape and AL-Foil with Drain wire
Insulation : High Density Polyethylene
Pairs : 2 Insulated conductors twisted together
Shield : Aluminum polyester foil
Sheath : PVC/LSZH (Optional)7.8 mm nominal
Cable Diameter : 7.15 mm nominal
Cable wt.per box : 13.3 kgs Aprrox.
Printing : Each meter printed with sequential Length Counter

Compatible with : All common systems according to TIA/EIA 568-C.2 and ISO/IEC 11801 Class E

Frequency	Insertion Loss	RL	NEXT	NEXT	ELFEXT	PSELFEXT	PSACR
(MHz)	(dB/100m)	(dB)	(dB)	(dB)	(dB)	(dB)	(dB)
1	2.1	20	78	75	78	75	570
4	3.8	23	78	75	78	72.9	552
8	5.3	24.5	78	75	75.9	71	547
10	5.9	25	78	75	74	66.9	543
16	7.5	25	78	75	69.9	65	542
20	8.4	25	78	75	68	63	541
25	9.4	24.3	78	75	64.1	55.2	540
31.25	10.5	23.6	78	75	64.1	55.2	539
62.5	15	21.5	75.2	72.5	53.1	39	539
100	19.1	20.1	72.4	69.4	54	47.3	537
200	27.6	18	67.9	64.9	48	43	536
250	31.1	17.3	66.4	63.4	46	41.5	535

For further information please contact Worldwide Cables engineering department.
