23 AWG U/UTP Cat-6a Cable

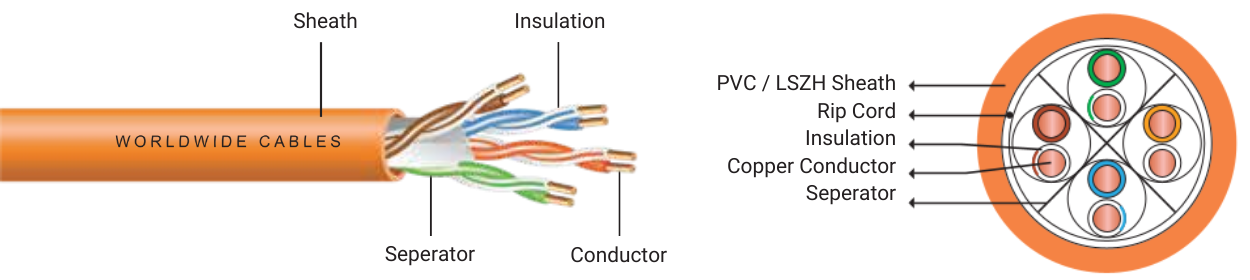

CONSTRUCTION

Refrence Standard : ANSI/TIA-568-C.2
Conductor : 23 AWG Solid Plain Copper 4-Pair
Insulation : High Density Polyethylene (0.48±0.05mm)
Pairs : 2 Insulated conductors twisted together
Filler : PE Separator
Ripcord : Nylon
Sheath : PVC/LSZH (Optional)
Cable Diameter : 6.40 mm nominal
Cable wt.per box : 11.5 kgs Aprrox.
Printing : Each meter printed with sequential Length Counter
Packing Length : 305 Meter/Roll

COLOR CODE

Pair No. 1 : White Blue and Blue
Pair No. 2 : White Orange and Orange
Pair No. 3 : White Green and Green
Pair No. 4 : White Brown and Brown

ELECTRIC PROPERTIES

Characteristics Impedance : 100 ± 15Ω
Conductor Resistance : ≤9.38 Ω/100m
Insulation Resistance : 100MΩ
Mutual Capacitance : ≤ 5 nF/100m
Reistance Unbalance : 4% Max
Capacitance Unbalance : 330 pF/100m
Delay Skew : ≤45 nS
NVP (%) : 69%
Operating Voltage : 72 V
Dielectric Strength : 1.0 kV dc or 0.70kV ac for 1 seconds

MECHANICAL PROPERTIES

Bending Radius : 4x Overall Diameter
Pulling Force : 10.5 kg
Operating Temperature Range : -20°C + 70°C
Storage Temperature Range : 0°C + 50°C

CONNECTION SYSTEM

Compatible with : All common systems according to TIA/EIA 568-C.2 and ISO/IEC 11801 Class E

Frequency	Insertion Loss	RL	NEXT	PSNEXT	ELFEXT	PSELFEXT	PSACR
(MHz)	(dB/100m)	(dB)	(dB)	(dB)	(dB)	(dB)	(dB)
1	2	20	75	72.3	68	65	570
4	3.8	23	66.3	63.3	56	53	552
8	5.3	24.5	61.8	58.8	49.8	46.9	547
10	6	25	60.3	57.3	48	45	545
16	7.5	25	57.2	54.2	43.9	40.9	543
20	8.4	25	55.8	52.8	42	39	542
25	9.4	24.3	54.3	51.3	39.8	36	541
31.25	10.5	23.6	52.9	49.9	38.1	35.1	540
62.5	14.9	21.5	48.7	45.4	32	29	539
100	19.1	20.1	45.3	42.3	28	25	538
200	27.6	18	40.8	37.8	22	19	537
250	31.1	17.3	39.3	36.3	20	17	536

For further information please contact Worldwide Cables engineering department.
